Описание товара
BTB16-800E — описание:Тиристоры Repetitive Peak Reverse Voltage (V) 800
Maximum Holding Current (mA) 15
RMS On-State Current (A) 16
Maximum Gate Trigger Current (mA) 10
Maximum Gate Trigger Voltage (V) 1.3
Peak On-State Voltage (V) 1.55@22.5A
Maximum Rate of Rise of Off-State Voltage (V/us) 40(Min)
Maximum Rate of Rise of On-State Current (A/us) 50
Repetitive Peak Off-State Current (mA) 0.005
Operating Junction Temperature (°C) -40 to 125
Repetitive Peak Forward Blocking Voltage (V) 800
Surge Current Rating (A) 168
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Tradename Snubberless™
Mounting Through Hole
Package Height (mm) 9.15(Max)
Package Length (mm) 10.4(Max)
Package Width (mm) 4.6(Max)
PCB changed 3

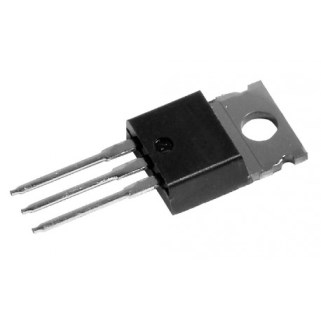

Standard Package Name TO-220
Supplier Package TO-220AB
